Tableau REST API Automation: Practical Patterns for BI Teams

Working with the Tableau REST API

The Tableau REST API is the most practical way to automate Tableau without tying yourself to one deployment model. It works across Tableau Server and Tableau Cloud, and it covers the operations BI teams usually need: users, groups, projects, permissions, workbooks, datasources, jobs, schedules, refreshes, and publishing.

In the metadata stack from this series, REST is the method I reach for when I need to change something or snapshot the current platform state. The PostgreSQL repository is stronger for historical analytics on Tableau Server, and the GraphQL Metadata API is stronger for lineage. REST is the automation layer between them: supported, documented, and portable enough to survive a Cloud vs Server decision.

Portable does not mean identical. Endpoint coverage, permissions, authentication, REST API version, and admin settings can differ between environments. Treat the examples below as patterns, then test them against your own site before scheduling anything.

For the platform comparison, see Part 2: Tableau Cloud vs On-Premise - Metadata Access Comparison. For repository analytics, see Part 4: Deep Dive into Tableau PostgreSQL Repository. For lineage, see Part 5: GraphQL for Advanced Tableau Metadata Analysis.

What REST is best at

REST is not just “an API for developers.” In a BI team, it becomes the control surface for the Tableau platform.

The workflows that usually pay off first:

• User and group lifecycle: create users, assign site roles, sync groups, remove inactive accounts.
• Content inventory: list projects, workbooks, views, datasources, owners, tags, and timestamps.
• Publishing automation: publish workbooks or datasources from CI/CD jobs.
• Extract operations: trigger refreshes, check job status, and detect failed refreshes.
• Permissions checks: inspect content permissions and compare them against expected access rules.
• Metadata snapshots: persist daily REST extracts into your own warehouse to track changes over time.

If you are building a Tableau governance layer, start with REST inventory snapshots. That gives you the base tables: users, groups, projects, workbooks, views, datasources, owners, and timestamps. Once those are in place, repository queries and GraphQL lineage become much easier to join into a single model.

Authentication: PAT first, password only for narrow cases

Every REST workflow starts with sign-in. You authenticate, Tableau returns a temporary session token, and every later request runs with the permissions of that signed-in user.

For automation, I would treat Personal Access Token (PAT) as the default. Tableau’s REST authentication docs recommend PAT sign-in because it avoids hard-coded passwords, and Tableau Cloud with MFA requires PAT or UAT instead of username/password. The current TSC sign-in docs are even more blunt: direct username/password sign-in is no longer allowed for Tableau Cloud.

A PAT can be revoked without disabling the user account, and one user can have multiple tokens for different automation areas. Treat the token secret like a password: store it in environment variables, a secrets manager, or CI/CD secrets. Never commit it to a repository.

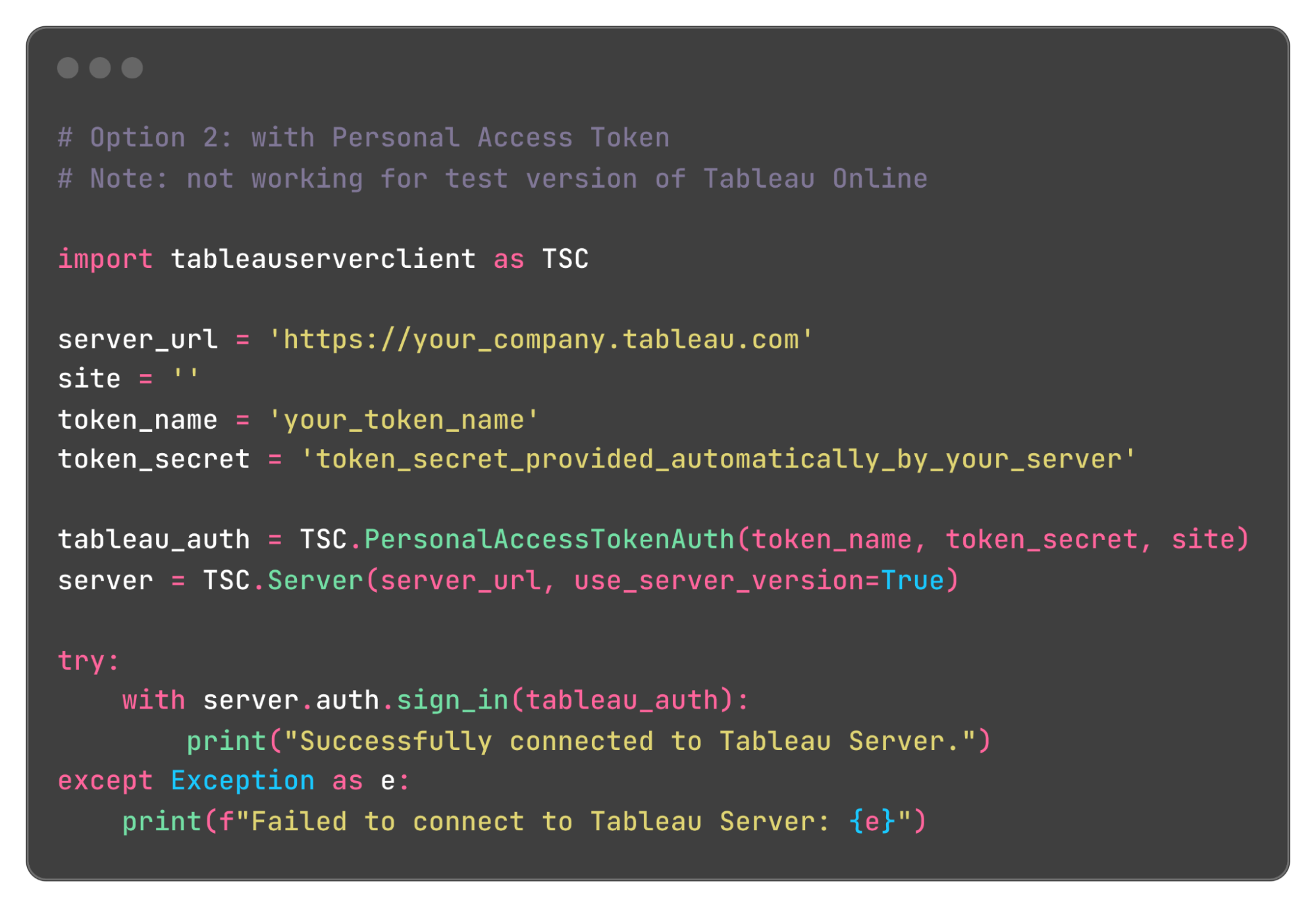

Minimal PAT sign-in with tableauserverclient

The Python library I normally use is tableauserverclient, often imported as TSC. It wraps the REST API and keeps the code readable.

import os

import tableauserverclient as TSC

server_url = os.environ["TABLEAU_SERVER_URL"]
site_id = os.environ.get("TABLEAU_SITE_ID", "")
token_name = os.environ["TABLEAU_PAT_NAME"]
token_secret = os.environ["TABLEAU_PAT_SECRET"]

auth = TSC.PersonalAccessTokenAuth(token_name, token_secret, site_id)
server = TSC.Server(server_url, use_server_version=True)

with server.auth.sign_in(auth):
    print("Connected to Tableau")

The same pattern works on Tableau Cloud and Tableau Server. The server URL and site content URL change; the automation logic usually does not.

Inventory snapshot: workbooks and owners

A useful first script is a workbook inventory export. It gives you the foundation for content audits, ownership cleanup, and dashboard lifecycle management.

import csv
import os

import tableauserverclient as TSC

auth = TSC.PersonalAccessTokenAuth(
    os.environ["TABLEAU_PAT_NAME"],
    os.environ["TABLEAU_PAT_SECRET"],
    os.environ.get("TABLEAU_SITE_ID", ""),
)
server = TSC.Server(os.environ["TABLEAU_SERVER_URL"], use_server_version=True)

with server.auth.sign_in(auth):
    with open("tableau_workbooks.csv", "w", newline="") as f:
        writer = csv.DictWriter(
            f,
            fieldnames=["id", "name", "project_name", "owner_id", "updated_at"],
        )
        writer.writeheader()

        for workbook in TSC.Pager(server.workbooks):
            writer.writerow(
                {
                    "id": workbook.id,
                    "name": workbook.name,
                    "project_name": workbook.project_name,
                    "owner_id": workbook.owner_id,
                    "updated_at": workbook.updated_at,
                }
            )

For a one-off audit, a CSV is fine. For an actual BI platform layer, write this into PostgreSQL, BigQuery, Snowflake, ClickHouse, or whatever warehouse your team already uses. The important part is making the snapshot repeatable.

Pagination: the detail that breaks naive scripts

Many Tableau REST endpoints return paginated results. Small test sites hide this problem because you only have a few dozen objects. Real sites expose it immediately: hundreds of workbooks, thousands of views, many groups, many users. TSC returns only the first page unless you page through the endpoint.

tableauserverclient can make this easier with its pagination helpers:

import os

import tableauserverclient as TSC

auth = TSC.PersonalAccessTokenAuth(
    os.environ["TABLEAU_PAT_NAME"],
    os.environ["TABLEAU_PAT_SECRET"],
    os.environ.get("TABLEAU_SITE_ID", ""),
)
server = TSC.Server(os.environ["TABLEAU_SERVER_URL"], use_server_version=True)

with server.auth.sign_in(auth):
    for workbook in TSC.Pager(server.workbooks):
        print(workbook.id, workbook.name)

If a script will run in production, assume pagination from day one. Otherwise the script will pass in development and silently miss content in the real site. That is one of the easiest ways to build a governance report that looks complete and is quietly wrong.

Triggering and monitoring extract refreshes

REST is also useful for operational jobs. A common example is triggering an extract refresh and waiting for the background job to finish.

import os

import tableauserverclient as TSC

auth = TSC.PersonalAccessTokenAuth(
    os.environ["TABLEAU_PAT_NAME"],
    os.environ["TABLEAU_PAT_SECRET"],
    os.environ.get("TABLEAU_SITE_ID", ""),
)
server = TSC.Server(os.environ["TABLEAU_SERVER_URL"], use_server_version=True)
target_workbook_id = os.environ["TABLEAU_WORKBOOK_ID"]

with server.auth.sign_in(auth):
    workbook = server.workbooks.get_by_id(target_workbook_id)
    job = server.workbooks.refresh(workbook)
    completed_job = server.jobs.wait_for_job(job.id, timeout=1800)

    print(completed_job.id, completed_job.finish_code, completed_job.completed_at)

This only works when the workbook has a refreshable extract and the signed-in user is allowed to run it. Tableau can also block “run now” refreshes at the site level. Those details matter because failed refresh automation is worse than no automation: it creates confidence without control.

Once the basics are reliable, this becomes the building block for more serious workflows: alerting on failed refreshes, triggering downstream checks, or attaching refresh status to a platform health dashboard.

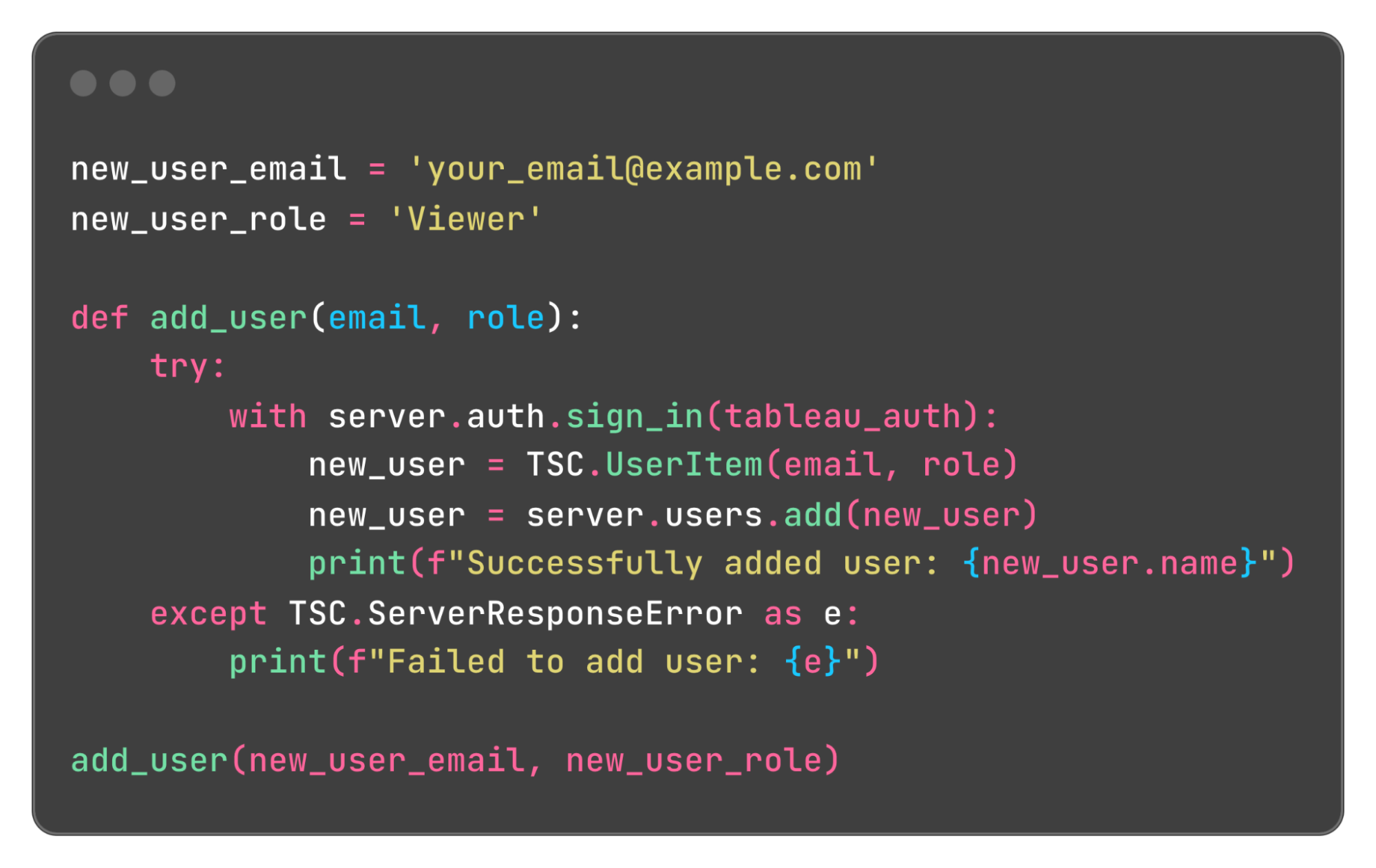

User and group provisioning

User management is where REST starts to feel like infrastructure. Instead of manually clicking through Tableau Server, you can sync users and groups from a source system.

import os

import tableauserverclient as TSC

auth = TSC.PersonalAccessTokenAuth(
    os.environ["TABLEAU_PAT_NAME"],
    os.environ["TABLEAU_PAT_SECRET"],
    os.environ.get("TABLEAU_SITE_ID", ""),
)
server = TSC.Server(os.environ["TABLEAU_SERVER_URL"], use_server_version=True)

with server.auth.sign_in(auth):
    user = TSC.UserItem(
        name="analyst@example.com",
        site_role=TSC.UserItem.Roles.Explorer,
    )
    user = server.users.add(user)

    groups = list(TSC.Pager(server.groups))
    finance_group = next(group for group in groups if group.name == "Finance")
    server.groups.add_user(finance_group, user.id)

In real projects, I would not hard-code users directly in the script. I would load an approved source table, compare expected vs actual state, apply only the diff, and log every change. On Tableau Cloud, user creation can also depend on the site’s authentication setup, so test that path with your actual identity configuration. User provisioning is not just convenience; it is an access-control process.

Permissions checks

Permissions are where Tableau automation becomes governance work. REST can retrieve content permissions, but the raw model is not business-friendly. You usually need to normalize users, groups, projects, capabilities, and inherited rules into a table that can be audited.

A practical starting point is:

1. Pull all users and groups.
2. Pull all projects, workbooks, views, and datasources.
3. Pull permissions for the content types that matter.
4. Expand group rules into user-level effective access where possible.
5. Compare actual access against your expected access matrix.

This is not glamorous work, but it is exactly the kind of automation that prevents permission drift.

REST vs PostgreSQL repository vs GraphQL

The three Tableau metadata methods solve different problems:

My default architecture is:

1. Use REST for current-state snapshots and operational automation.
2. Use GraphQL for lineage and impact analysis.
3. Use the PostgreSQL repository on Tableau Server when you need historical usage, events, and deeper audit data.
4. Store all three outputs in your own warehouse if you need long-term analytics.

That last point matters. APIs give you access; your warehouse gives you memory. Without snapshots, you only know what the platform looks like right now.

Production checklist

Before turning a REST script into a scheduled job, check these basics:

• PAT stored outside the repository.
• Dedicated service account with least-privilege access.
• Pagination handled on all list endpoints.
• Retries and failure logging in place.
• Output persisted to a durable store, not just a local CSV.
• Job owner defined.
• Alerting configured for failed runs.
• Change log retained for user, group, and permission updates.

That is the difference between a helpful script and a platform automation.

FAQ

Does the Tableau REST API work on both Tableau Cloud and Tableau Server? Yes. The exact host, authentication context, permissions, API version, and admin settings differ, but the automation patterns are broadly portable.

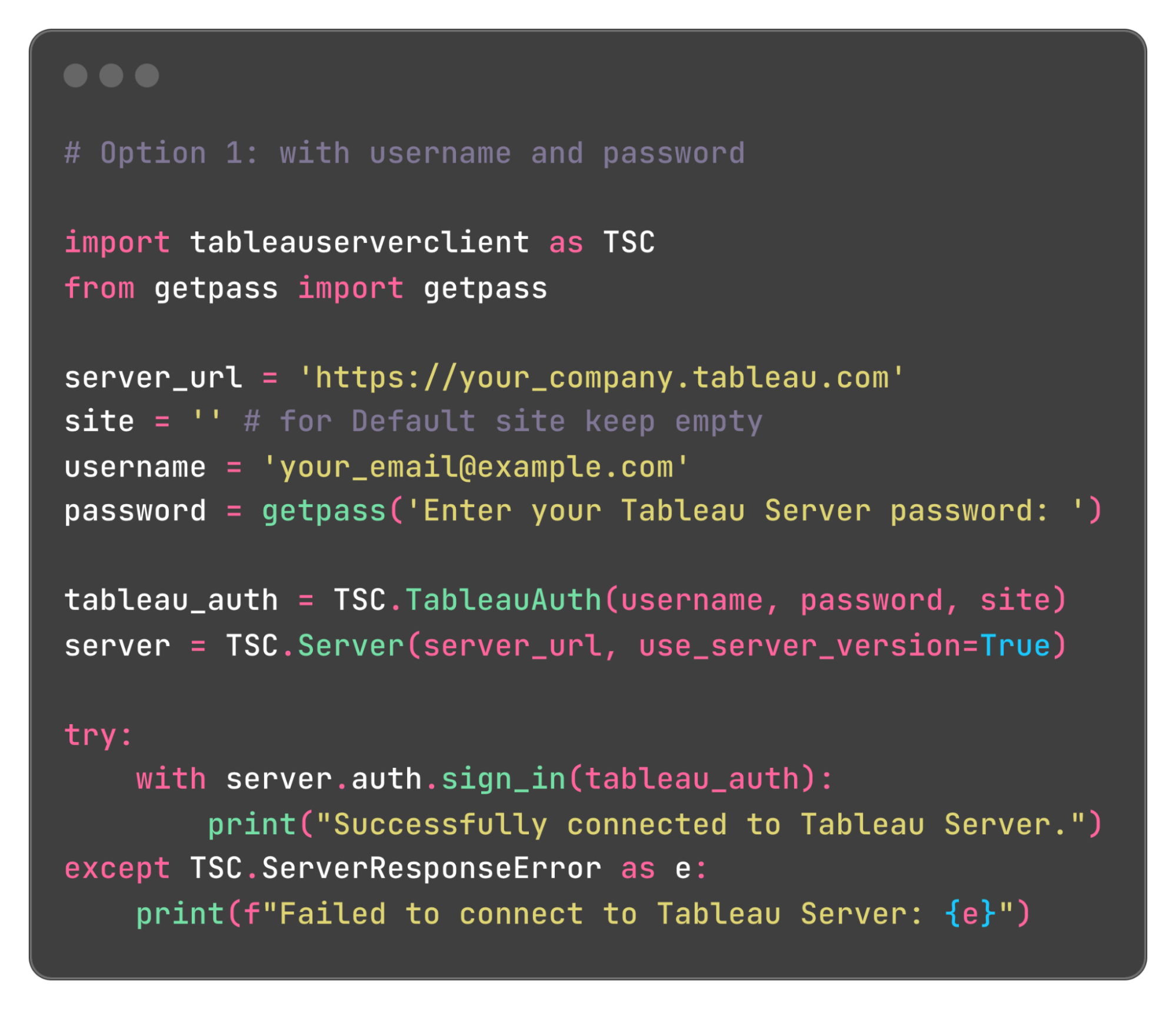

Should I use username/password or PAT? Use PAT for scheduled jobs and backend services. Username/password is a narrow Tableau Server/local-test option, not a production automation pattern and not something I would rely on for Tableau Cloud.

Can REST replace the Tableau PostgreSQL repository? Not fully. REST is good for current-state automation. The repository is much stronger for historical Server analytics, especially events and detailed operational metadata.

Can REST replace the GraphQL Metadata API? No. REST can list content and perform operations, but GraphQL is better for lineage, dependencies, and impact analysis.

What is the first REST automation worth building? A daily inventory snapshot of users, groups, projects, workbooks, views, datasources, owners, and timestamps. That gives you the base layer for audits, cleanup, and BI platform metrics.
